T-Rex CAM Mold Making
Designing and manufacturing a T-Rex keychain mold using CAD, CAM, and injection molding simulation.
T-Rex CAM Mold Making
T-Rex CAM Mold making
Project Overview
For this project, we were tasked with designing an injection-molded object.
As a group, we designed a T-Rex keychain with movable arms and legs.
The project involved:
- 3D CAD modeling of the T-Rex
- Injection molding simulation to analyze feasibility
- CAM programming for milling the mold
Since we were allowed to mill only one half of the mold, we innovatively decided to attach two body halves together to form a fully 3D T-Rex.

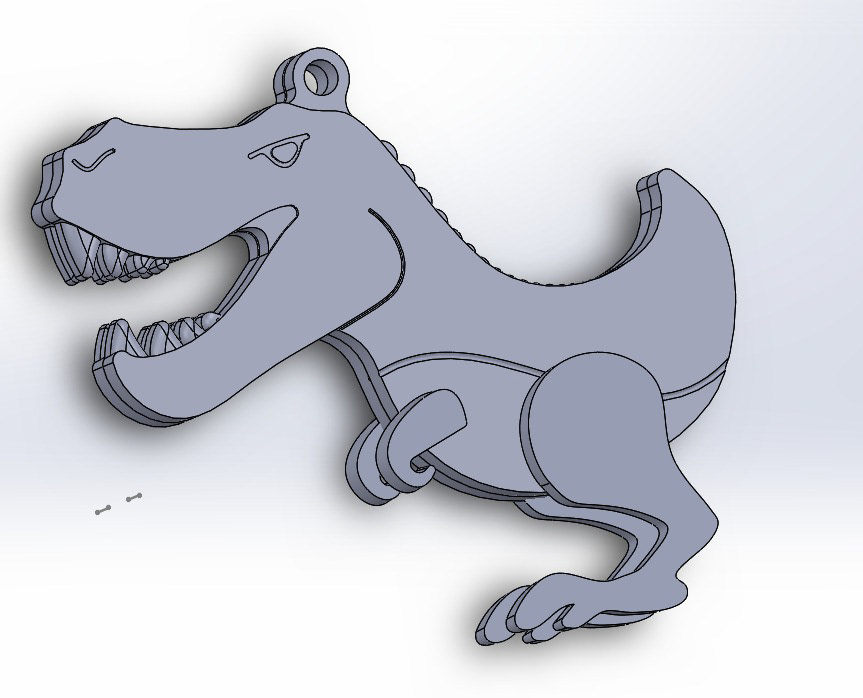

Sketch and CAD model

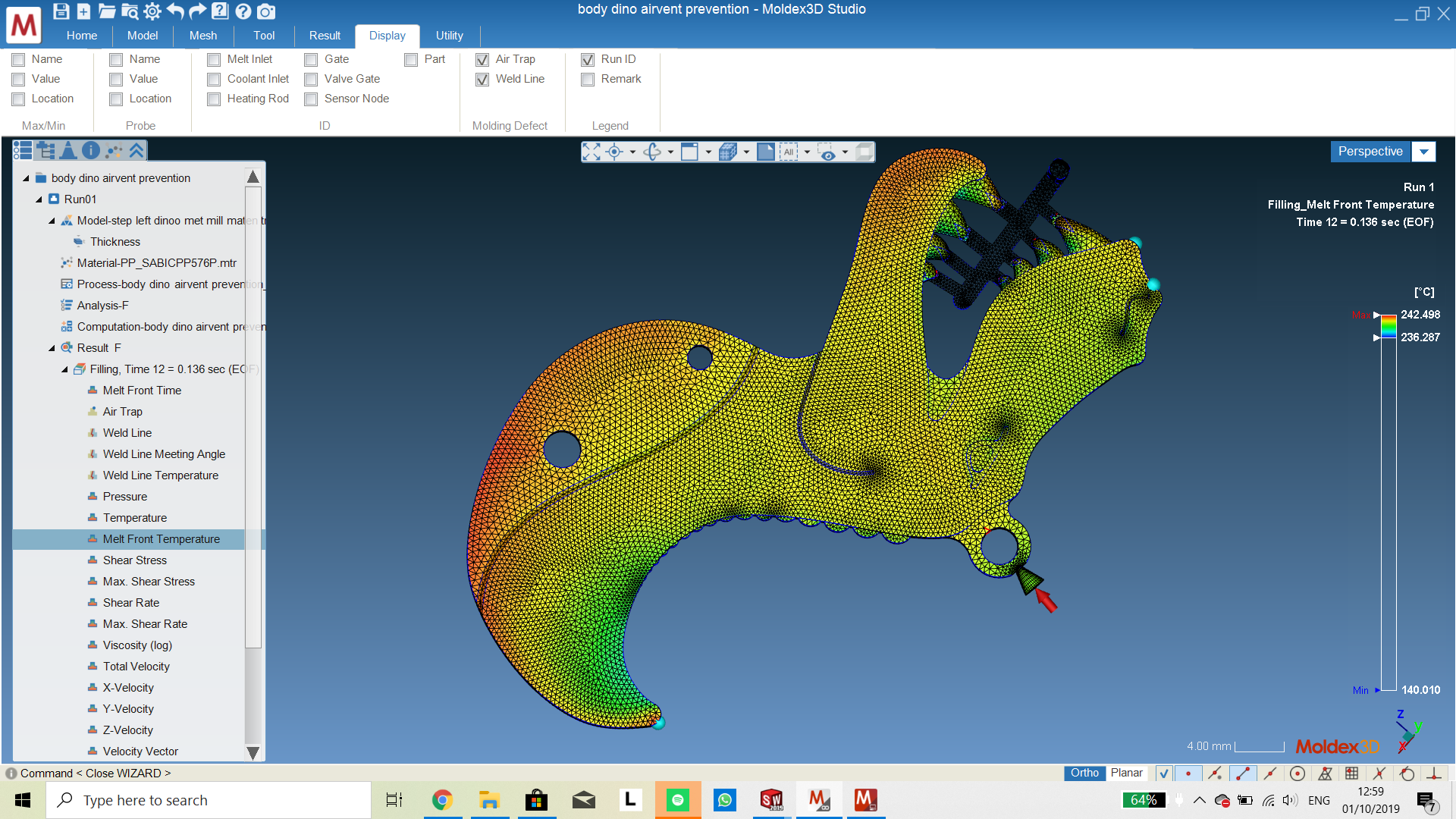

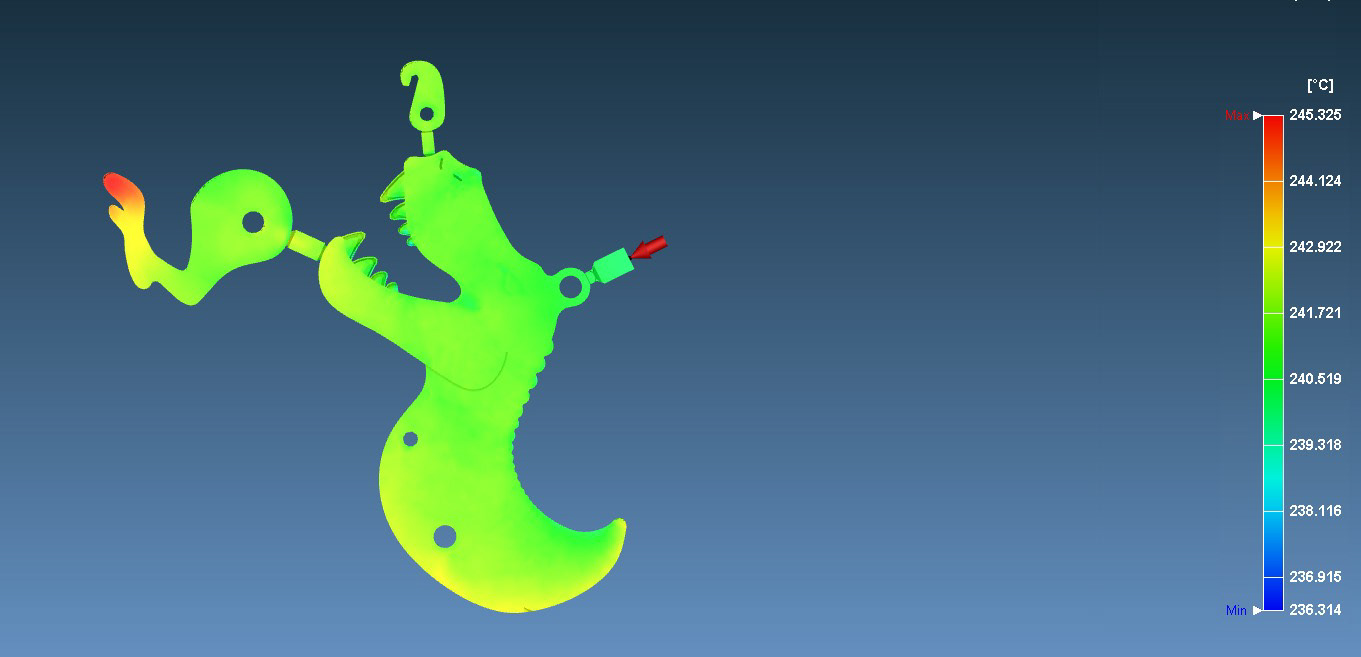

Mold Simulation (Moldex)

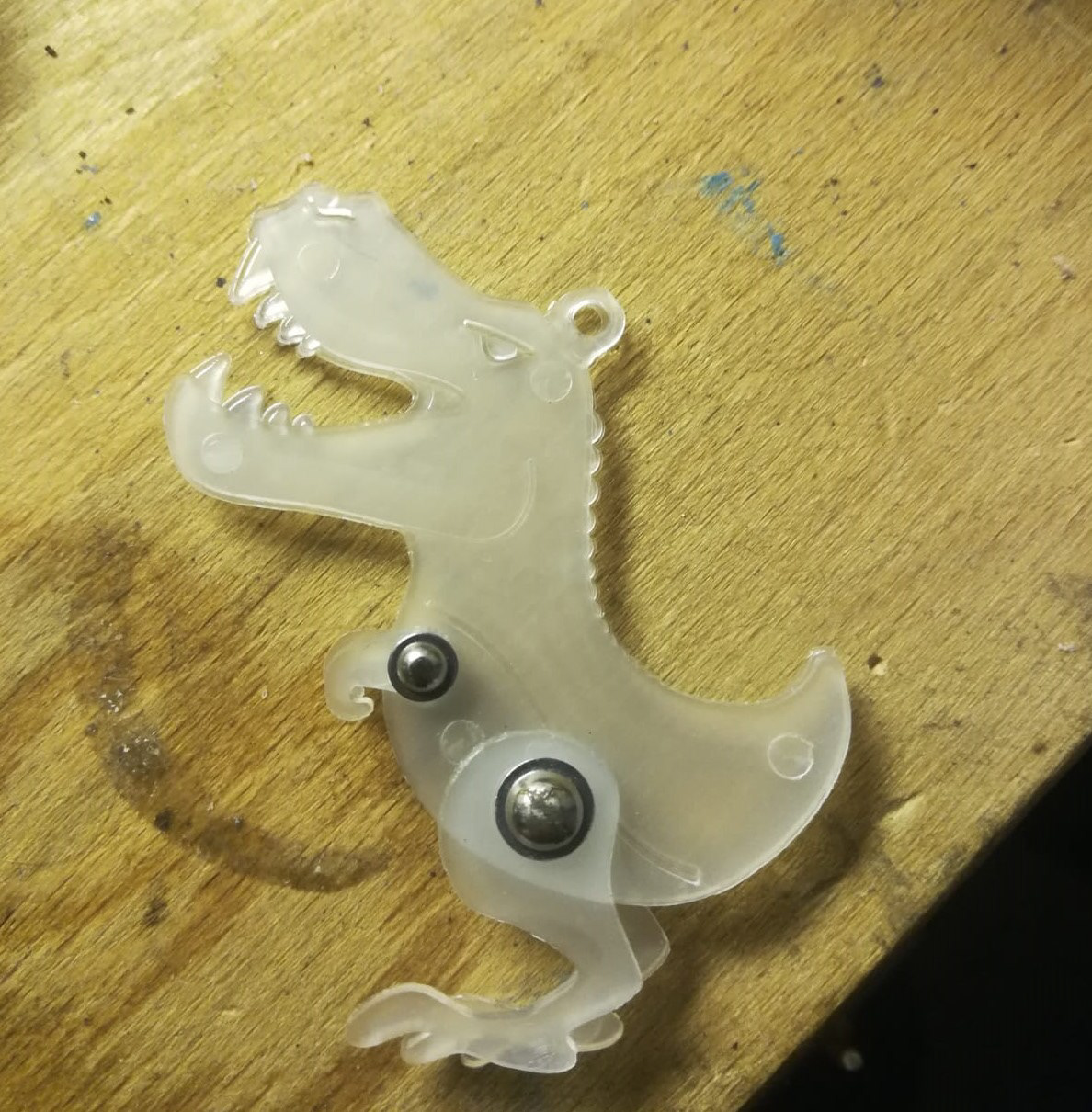

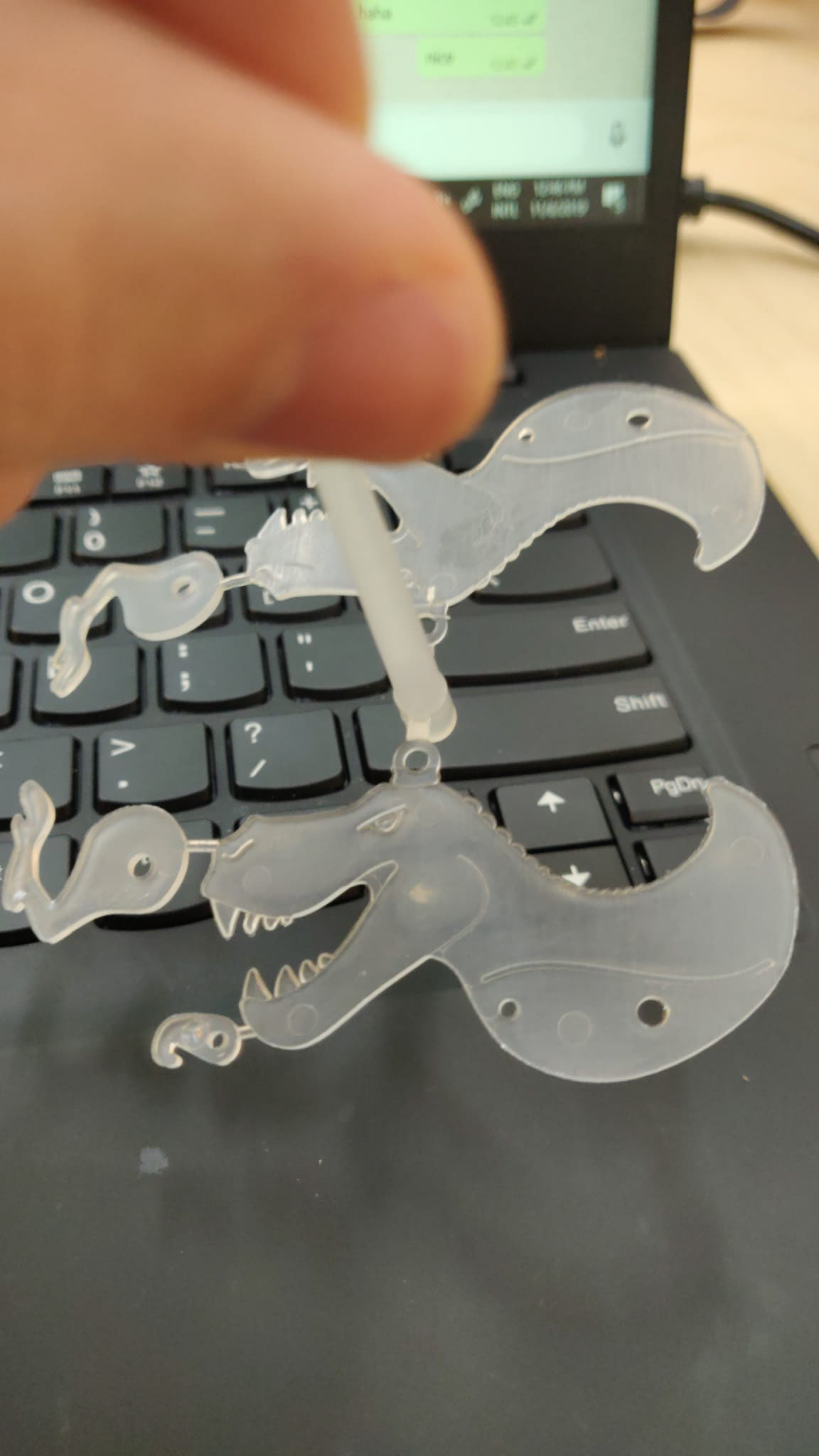

Final Result
CAM Video
CAM Video of mold
Time
- 2nd year Bachelor Industrial Design Engineering
